Heteromorphic carbon tubes, carbon tubes of various shapes, custom-made according to drawings, a powerful manufacturer

Carbon fiber itself has stable chemical properties. When combined with an epoxy resin matrix, it can resist the erosion of acids, alkalis, salts and organic solvents. In harsh environments such as Marine and chemical industries, its service life far exceeds that of metal pipes. For instance, carbon fiber composite pipes can still operate stably in acidic and alkaline environments with a pH range of 0 to 14, and their surface resistance is as low as below 10⁶Ω, meeting the transportation requirements of flammable and explosive media

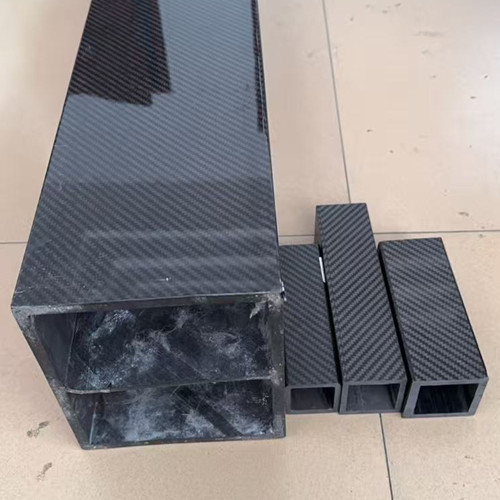

Carbon fiber tubes and carbon fiber rectangular tubes can be customized freely

Customizable rectangular square tubes with a width of 800mm, a height of 800mm and a length of 8.5 meters

The mechanical properties of the pipe can be precisely regulated by adjusting the fiber layup Angle (such as alternating 0°/90°) and the resin type (thermosetting/thermoplastic). For instance, pipes with axial layering as the main component have outstanding tensile strength, while those with circumferential layering enhance their resistance to internal pressure
