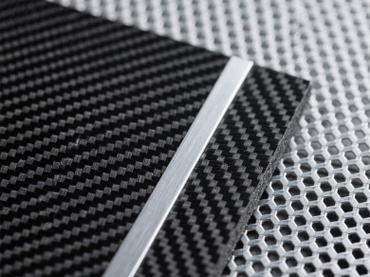

Custom colored carbon plates, chopped carbon plates, arbitrarily customized carbon plates

By customizing the cross - sectional shape, accurately match the force - bearing paths of the structure (such as corners, grooves, load - bearing beams), avoiding "excessive material performance" or "structural redundancy".

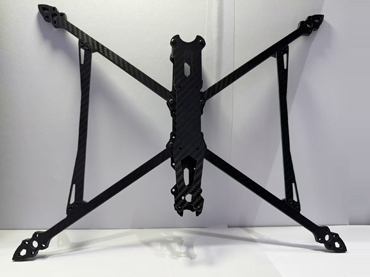

The density of carbon fiber is only 1.6-1.8g/cm³, approximately 60% of that of aluminum alloy (2.7g/cm³) and 35% of that of titanium alloy (4.5g/cm³). For instance, the frame of a certain consumer-grade drone (with a takeoff weight of 3kg) is assembled with 0.8-2mm thick engraved carbon plates. The overall frame weighs only 280g, which is 45% lighter than an aluminum alloy frame of the same strength, directly increasing the flight endurance by approximately 25 minutes

The "more stable support strength" of six-chamber and multi-chamber carbon fiber tubes is essentially achieved by deeply coupling the material properties of carbon fiber with structural design through three core logic: multi-chamber stress dispersion, reinforcement rigidity with ribs, and optimization of material anisotropy. Ultimately, it realizes the support effect of "making the strength more controllable, more resistant to fluctuations, and more resistant to extreme working conditions on the basis of lightweight".

Carbon fiber integrated polygonal bracket，Lined with PMi core material, it is lighter in weight and higher in strength. The exterior is made of pure carbon fiber laid in a cross pattern, and it is used for ship parts, train parts, etc.

Carbon fiber materials have extremely high permeability to ionizing radiation such as X-rays and CT. For instance, a 1mm thick carbon fiber plate has an X-ray transmittance of up to 96% and a scattering rate of only 1.8%, which is significantly superior to traditional plywood (63% transmittance) and aluminum plates (78% transmittance). This feature enables doctors to obtain clear images during radiotherapy or imaging examinations without increasing the radiation dose, reducing the radiation exposure risk for both patients and medical staff, and extending the service life of the equipment. In an MRI environment, the non-metallic properties of carbon fibers prevent the interference of metal artifacts, ensuring imaging accuracy.

T700 - T800 high modulus carbon fiber sheets

Shandong Songnuo Composite Material Co., Ltd. in China is a high-tech enterprise focusing on the research, development, processing, production and sales of high-performance materials. It is located in the Economic and Technological Development Zone of Dezhou City, Shandong Province, China. The company covers an area of 26,000 square meters and has 150 employees, including 5 senior engineers and 2 senior professors.

In the vast starry sky of materials science, carbon fiber is reshaping the genes of modern industry in an epoch-making manner. This fibrous material composed of carbon elements, with its strength surpassing that of metals, density approaching that of plastics, and outstanding properties of high-temperature resistance and corrosion resistance, is triggering a silent industrial revolution in fields such as aerospace, new energy, and high-end equipment. From rocket engine casings to battery boxes of new energy vehicles, from the shells of deep-sea probes to smart wearable devices, every breakthrough in the application of carbon fiber is redefining human understanding of the limits of materials.

Before formally discussing the advantages and disadvantages, we first need to understand exactly what carbon fiber plates are. In simple terms, carbon fiber sheet is a high-performance sheet made by combining carbon fiber as the main reinforcing material with resin and other matrix materials. For instance, if carbon fiber is compared to steel bars, then resin is like concrete. When the two are combined, they become a strong and durable "super material".
